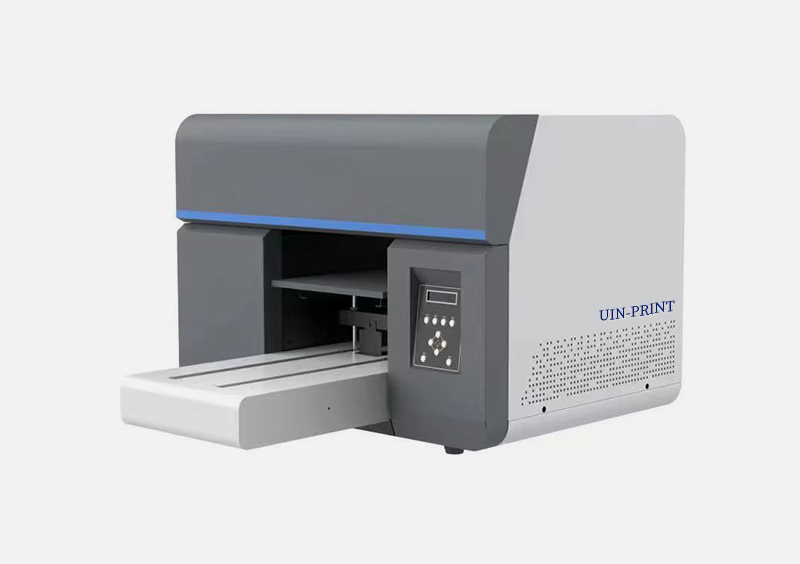

UIN-A3 Series Inkjet Printer
UIN-A3 EPSON i3200 is a cutting-edge printer with advanced features, ideal for high-resolution, photo-quality output. Its revolutionary Headhunting-resolution ensures precision in every print, supported by a lifting suction platform made of high-precision honeycomb hard aluminum for remarkable flatness within a 0.1mm tolerance.
With a lifting ink station design and motor-driven mechanism, the printer provides precise carriage control, enhancing precision and protecting nozzles for optimal performance. The intelligent ink supply system, featuring a new cartridge design, offers automatic ink circulation and ink shortage alerts, streamlining the printing process.
The user-friendly interface simplifies operation, introducing UV printing on cylindrical objects using a rotary set for comprehensive surface coverage. The printer also enables 360-degree direct printing, expanding creative possibilities. An automatic circulation system for white ink ensures continuous flow, preventing issues and guaranteeing consistent performance for various printing applications.
In summary, the EPSON i3200 S1HD is a powerful, versatile printer with innovative features, high precision, and user-friendly design—a top choice for professionals seeking exceptional printing results.
| Technical Parameters | |
| Item |
Model |
| UIN-A3 | |
| Printhead | Epson i3200 S1HD Grey Scale Micro Piezo Printhead |
| Printhead Quantity | 1unit |
| Print Size | Flat(297*420mm),Roll(297*420mm) |
| Print Thickness | 1mm-95mm |
| Ink Type | Environment-friendly UV Curing Ink |
| Ink Color | Standard: C M Y K W Varnish, Optional: YMCKLcLmW |
| Control Software | Maintop, FlexiPRINT Riin |
| Media Type | Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, Leather, etc. |
| Media Adsorption System | Automatic Control |
| Print File Format | TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc. |
| Power/Power Rating | 220V 50HZ/60HZ/1000W |
| Computer Configuration | Computer System: Win10, 64 bit: Gigabit Ethernet Port |
| Working Environment | Temperature: 15°C-25C,Humidity: 40%-70% |
| Weight | 80kg /150kg |
| Printer Dimension | 837mm*1019mm*615mm(L*W*H) |
| Optional Accessories | Cylindrical Printing Accessory, Roll Printing Accessories |
Printing samples
