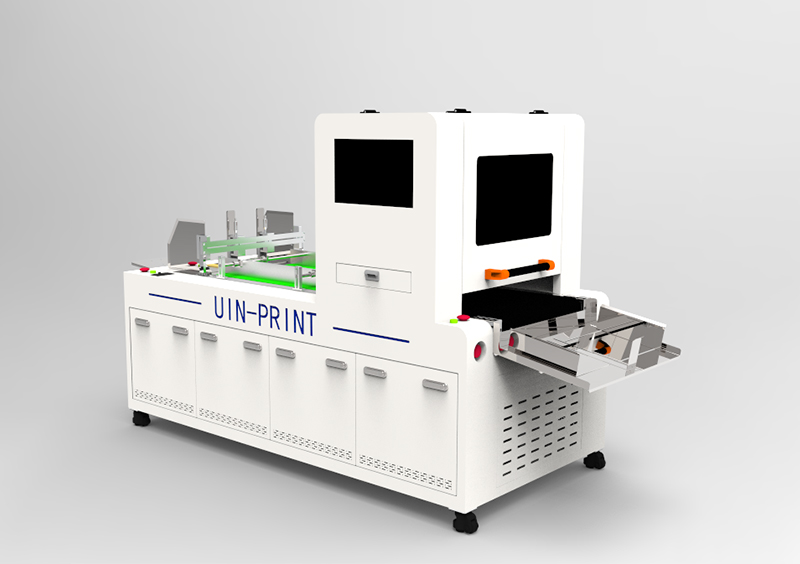

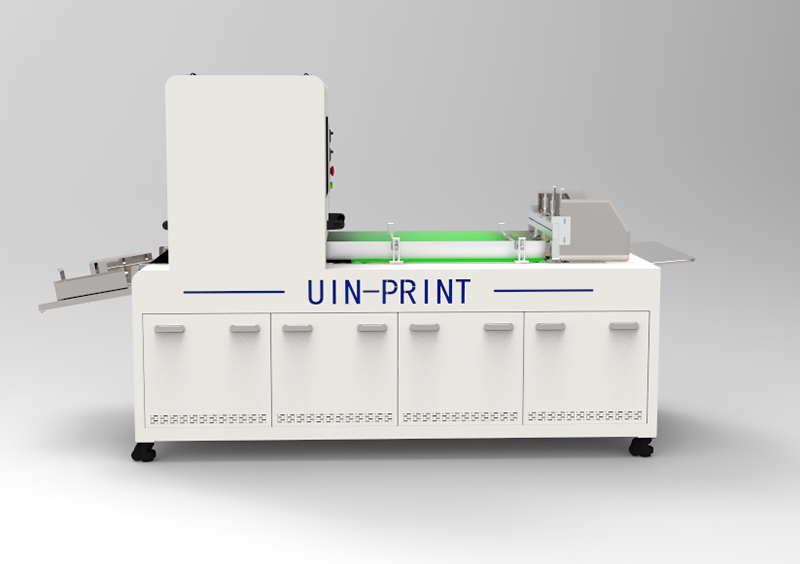

Single pass UIN-300A digital printer
printer, lt can print on the surface of various absorbent materials such as carton、writing paper、offset paper、kraft paper, corrugated paper, special paper, cotton paper, rice paper, double adhesive paper、degradable lunch container、handbag etc, and customize printing with personalized designs without waiting or plate-making. lmport . import then printing immediately, quick and convenient. Water-based environment ink, CMYK printing . lt is very suitable for rush orders, small orders, color orders,and e-commerce orders.
| 技术参数 Technical Parameters | |
|
机器型号 Machine model |
UIN-300A digital printer |
|
喷头类型 Printhead technology |
HP-A3 |
|
喷头分辨率 Printhead resolution |
1200dpi |
|
喷嘴数量 Number of nozzles |
59136(4224*14) |
|
喷头数量 Printhead number |
1Pcs |
|
喷头宽度 Printhead width |
300mm |
|
印刷宽度 Printing width |
330mm |
|
喷头可升高度 Printhead rising height |
标准高度100mm,可接受高度定制100mm ,accept height customization |
|
墨水类型 Ink type |
水性颜料 Water-based pigment、水性染料 Water-based dye |
|
墨水颜色 Ink color |
Cyan 、Magenta、yellow、black |
|
可变数据 Variable data |
支持打印一维码,二维码,序列号,随机数,支持数据和图像 Support printing One-dimensional code,QR code,serial number, random number,support data and image. |
|
喷印软件 Printing software |
Single pass RIP |
|
支持文件 Supporting documents |
TIFF、BMP、JPEG、CDR、PSD、JPG 等常见格式 |
|
喷印精度 Printing resolution |
300dpi/600dpi/900dpi/ 1200dpi |
|
喷印速度 Printing speed |
0-60m/min |
|
可进料最大尺寸 Maximum width for material |
585mm |
|
数据接口 Data connection |
网线口(网口)Network line interface |
|
操作系统 Operating system |
Windows7 /Windows8/Windows10/XP |
|
喷印材料 Printing material |
纸板、书写纸、胶版印刷纸、牛皮纸、可降解午餐容器、涂布纸、木材、手提包和直降材质等 |
|
电力要求 Power requirement |
50/60Hz, 110/220VAC 800W |
|
工作环境 Operation environment |
温度 Temperature15-35℃ 湿度 Humidity20%~60% |
|
机器重量 Equipment size |
332kg |
|
机器尺寸 Equipment size |
(length)2410mm x(width)1090mm x(height)1550mm |
|
包装重量 Packing weight |
448kg |
|
包装尺寸 Packing size |
(length)2500mm*(width)1150mm*(height)1580mm |
|
无版喷墨印刷机优势 Advantages Of Plateless Inkjet Printing |
||
|
无 需 制 版 No need for plate making |
无 需 洗 机 No need to machine wash |
环 保 节 能 Environmental protection and energy saving |
|
喷 墨 技 术 Inkjet technology |
一 张 起 印 Print from one sheet |
立 等 可 取 Immediately wait for it |
|
工 艺 简 单 Process is simple |
操 作 方 便 Easy to operate |
省 时 省 力 Save time and effort |
Printing samples
