single pass printer,UIN-PRINT

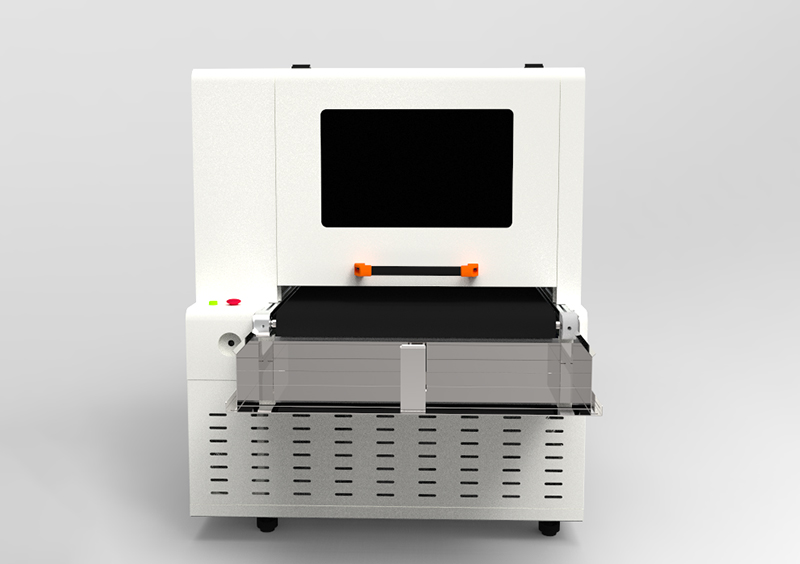

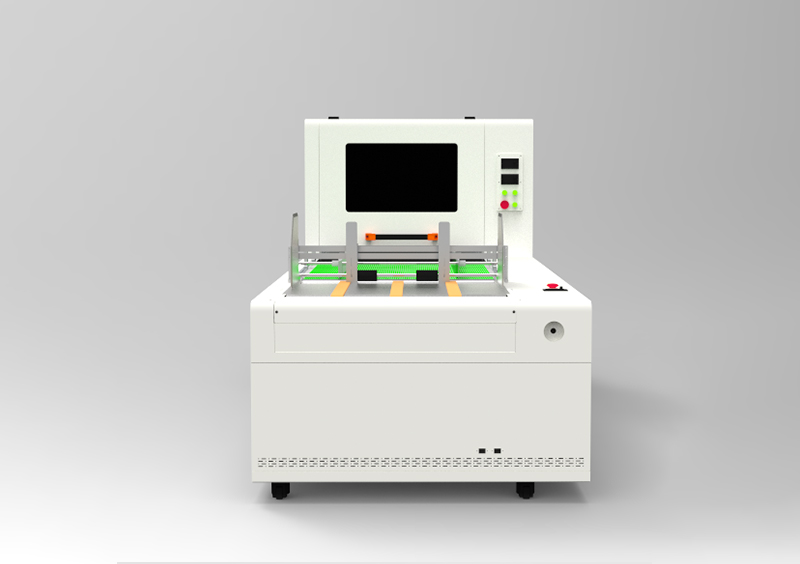

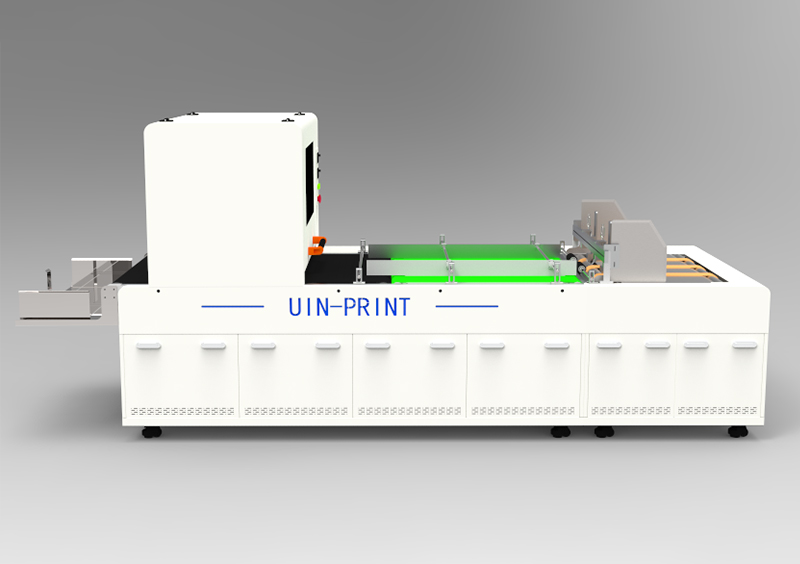

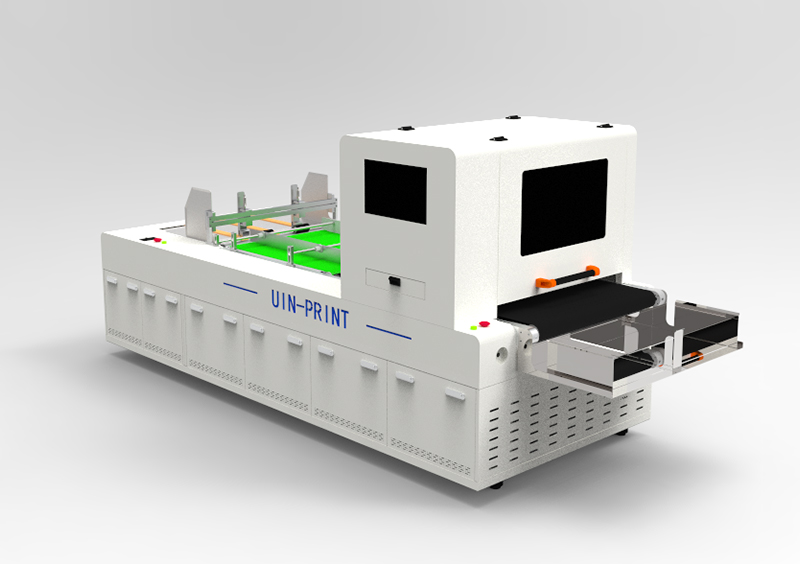

Single pass UIN-900A digital printer

Single pass UIN-900A digital printer with suction feeding, Newly style digital color inkjet printer, lt can print on the surface of various absorbent materials such as Kinds of paper,absorbent fabric,napkin、non-woven fabric etc, and customize printing with personalized designs without waiting or plate-making.lmport then printing immediately, quick and convenient. Water-based environment ink, CMYK printing . lt is very suitable for rush orders, small orders, color orders, and e-commerce orders.

Send Inquiry

技术参数 Technical Parameters
机器型号 Machine model	UIN-900A
喷头类型 Printhead technology	HP-A3
喷头分辨率 Printhead resolution	1200dpi
喷嘴数量 Number of nozzles	59136(4224*14)
喷头数量 Printhead number	2Pcs
喷头宽度 Printhead width	300mm
喷印宽度 Printing width	宽度600mm，长度无限制 Printing width 600mm,unlimited length
喷头可升高度 Printhead rising height	标准喷印高度120mm，可接受高度定制 Standard height 120 mm,accept height customization
墨水类型 Ink type	水性 Water-based ink
可变数据 Variable data	支持喷印可变一维码、二维码、流水号、乱码等，支持数据以及图像可变信息 Support printing one-dimensional code,QR code,serial number,random number,support data and image.
喷印软件 Printing software	Single pass RIP
支持文件 Supporting documents	TIFF、BMP、JPEG、CDR、PSD、JPG 等常见格式
喷印精度 Printing resolution	300dpi/600dpi/1200dpi
喷印速度 Printing speed	0-60m/min
数据接口 Data connection	网线口（网口）Network line interface
操作系统 Operating system	Windows7 /Windows8/Windows10/XP
喷印材料 Printing material	各类纸质用品，吸水性布料，纸张，餐巾、无纺布等（具体以实测为准） Kinds of paper,absorbent fabric,napkin、non-woven fabric etc(subject to actual testing)
可放材料宽度 Material width	860mm
输送线速度 Running speed	0-80m/min
控制方式 Control mode	PLC+伺服系统 PLC+servo system
上料方式 Feeding model	吸附上料 Suction feeding
电力要求 Power requirement	50/60Hz, 110/220VAC 800W
工作环境 Operation environment	温度 Temperature15-35℃ 湿度 Humidity20%～60%
机器尺寸 Equipment size	(length)2600mm x(width)1380mm x(height)1550mm
包装尺寸 Packing size	2682mm1410mm1750mm
