single pass printer,UIN-PRINT

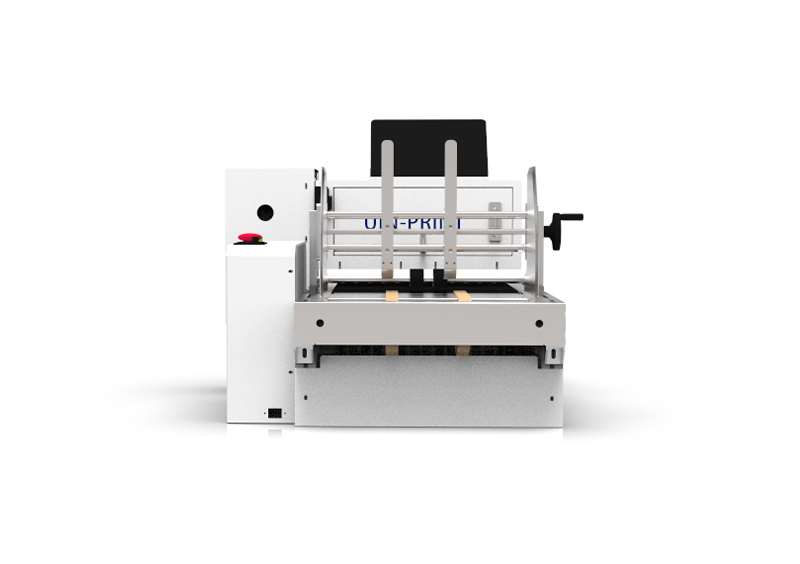

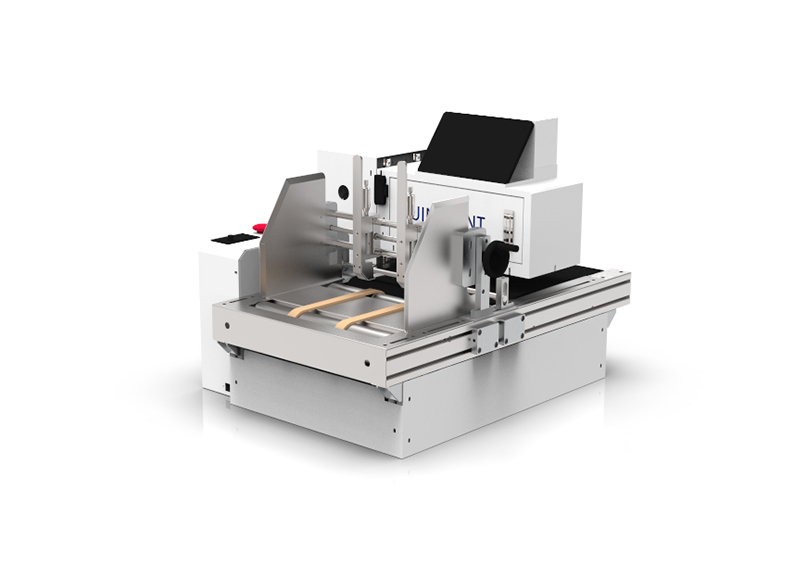

Single pass MiNi UIN-300A digital printer

Single pass MiNi UIN-300A digital printer, Newly style digital color inkjet printer, lt can print on the surface of various absorbent materials such as carton、writing paper、offset paper、kraft paper, corrugated paper, envelop、paperbag,papercup etc, and customize printing with personalized designs without waiting or plate-making.lmport then printing immediately, quick and convenient. Water-based environment ink, CMYK printing . lt is very suitable for rush orders, small orders, color orders, and e-commerce orders.
UIN-PRINT mini single pass machine ,smart body ,low cost ,perfect printing effect !It is a powerful tool for you to begin a printing career

Send Inquiry

技术参数 Technical Parameters
机器型号 Machine model	Mini UIN-300A
喷头类型 Printhead technology	HP-A3
喷头分辨率 Printhead resolution	1200dpi
喷嘴数量 Number of nozzles	59136(4224*14)
喷头数量 Printhead number	1Pcs
喷头宽度 Printhead width	300mm
喷印宽度 Printing width	单个喷头300mm，One Nozzle printing width 300mm
喷头可升高度 Printhead rising height	标准喷印高度120mm，可接受高度定制 Standard height 120 mm,accept height customization
墨水类型 Ink type	水性 Water-based ink
可变数据 Variable data	支持喷印可变一维码、二维码、流水号、乱码等，支持数据以及图像可变信息 Support printing one-dimensional code,QR code,serial number,random number,support data and image.
喷印软件 Printing software	Single pass RIP
支持文件 Supporting documents	TIFF、BMP、JPEG、CDR、PSD、JPG 等常见格式
喷印精度 Printing resolution	300dpi/600dpi/1200dpi
喷印速度 Printing speed	0-60m/min
进料尺寸 Maximum width for material	400mm
分页方式 Paging mode	智能摩擦分页给料，下出料 Friction feeding
数据接口 Data connection	网线口（网口）Network line interface
操作系统 Operating system	Windows7 /Windows8/Windows10/XP
电力要求 Power requirement	50/60Hz,110/220VAC 800W
设备重量 Equipment weight	90kg
设备尺寸 Equipment size	9107107000mm（长宽高）
包装重量 Packaging weight	130kg
包装尺寸 Packaging size	960mm850mm770mm
