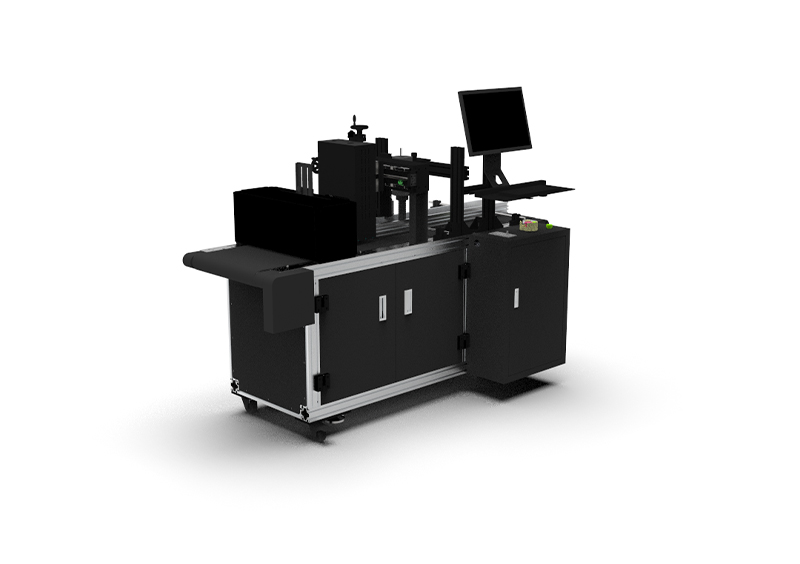

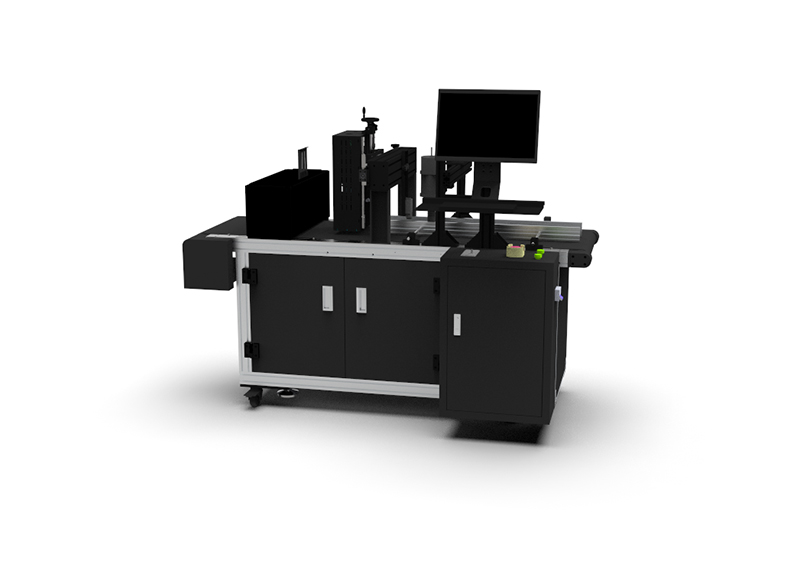

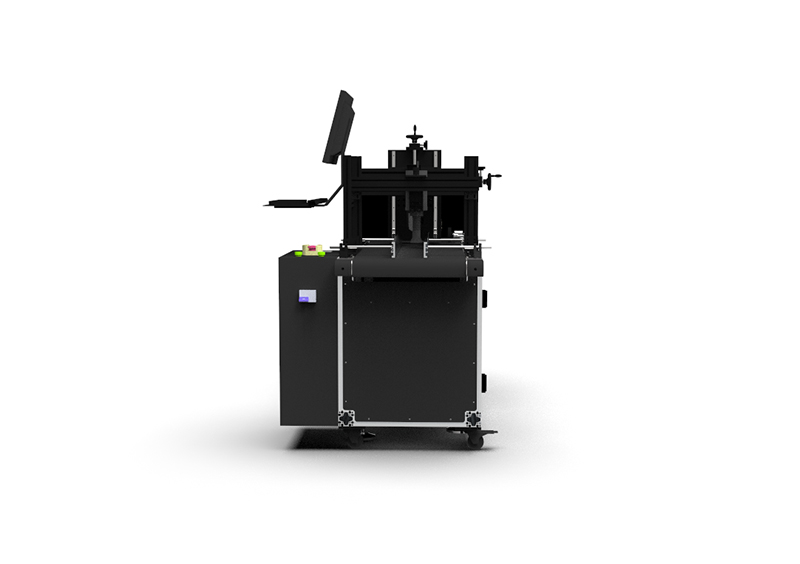

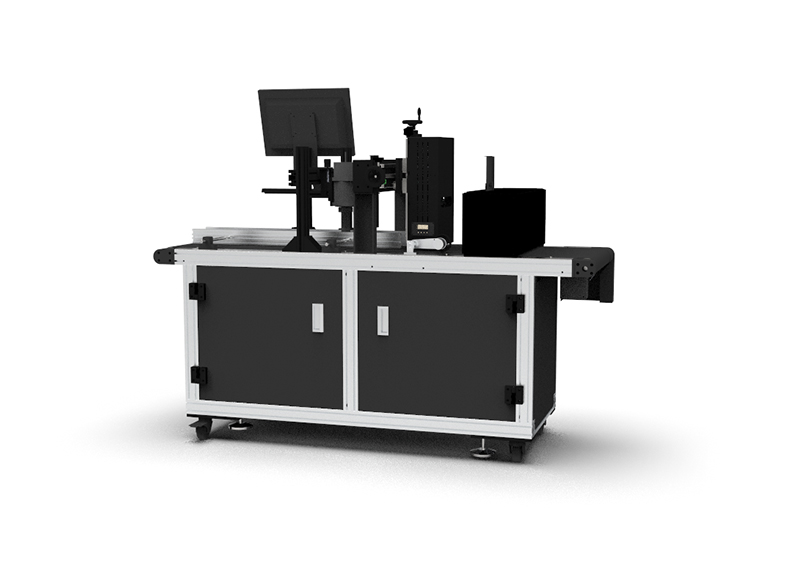

UIN-2001U Single-Color Dual-Row Machine
UIN-2001U Single-Color Dual-Row Machine, This machine is a customized digital printing solution designed for the packaging industry. It boasts an exquisite and beautiful appearance with user-friendly operation. This machine can print patterns on surfaces of materials such as tea paper, PVC, PP, acrylic, metal, wood, etc. It enables personalized and customized printing content without the need for waiting or plate making. Users can import the desired printing pattern and start printing
immediately, serving as an alternative to traditional screen printing. The stable performance helps customers achieve excellent print quality, enhance production efficiency, and reduce costs.
The upgraded version offers even more convenient operation, a more exquisite appearance, and a more stable mechanism, significantly improving overall efficiency.
| 技术参数 Technical Parameters | |
|
机器型号 Machine model |
UIN-2001U |
|
喷头技术 Printhead technical |
Ricoh / Seiko |
|
喷头寿命 Printhead life |
压电体驱动耐久性，超过1060亿次 |
|
喷头宽度 Printhead width |
54mm/108mm |
|
喷嘴数量 Number of nozzles |
1280 |
|
喷嘴排数 Number of nozzle rows |
4 rows |
|
喷印材料 Printhead material |
PVC PP 塑料 橡胶 铁制品 木质 玻璃 礼品 工艺 |
|
走料方式 Material feeding method |
单个/单体 Single/Monomer |
|
喷印颜色 Printing color |
单色，双色 One color、two colors |
|
喷印宽度 Printing width |
54mm/108mm/Multiple row options |
|
喷印精度 printing resolution |
360*360dpi 360*600dpi |
|
喷印高度 Printing height |
标准高度180mm，高度可接受定制180mm , accept height customization |
|
接口类型 Interface type |
TCP/IP,dll customization |
|
喷印电脑 Printing computer |
工控制电脑，Windows 10系统 |
|
喷印软件 Printing software |
可变数据编辑软件，Magic Data,variable data editing software |
|
二次开发 Secondary development |
软件提供接口支持二次开发 |
|
墨路控制系统 Ink system control |
负压墨路控制，正压喷头清洗 |
|
电源功率 Power requirement |
AC220V±10%50Hz/60Hz |
|
输送速度 Conveying speed |
0-50m/min |
|
材料宽度 Material width |
430mm |
|
标准配置 Standard configuration |
导料机构+打印机 Feed mechanism+printer |
|
机器尺寸 Equipment size |
(length)1748mmx(width)912mmx(height)1338mm |
|
机器重量 Equipment weight |
260KG |
|
无版喷墨印刷机优势 Advantages Of Plateless Inkjet Printing |
||
|
无 需 制 版 No need for plate making |
无 需 洗 机 No need to machine wash |
环 保 节 能 Environmental protection and energy saving |
|
喷 墨 技 术 Inkjet technology |
一 张 起 印 Print from one sheet |
立 等 可 取 Immediately wait for it |
|
工 艺 简 单 Process is simple |
操 作 方 便 Easy to operate |
省 时 省 力 Save time and effort |

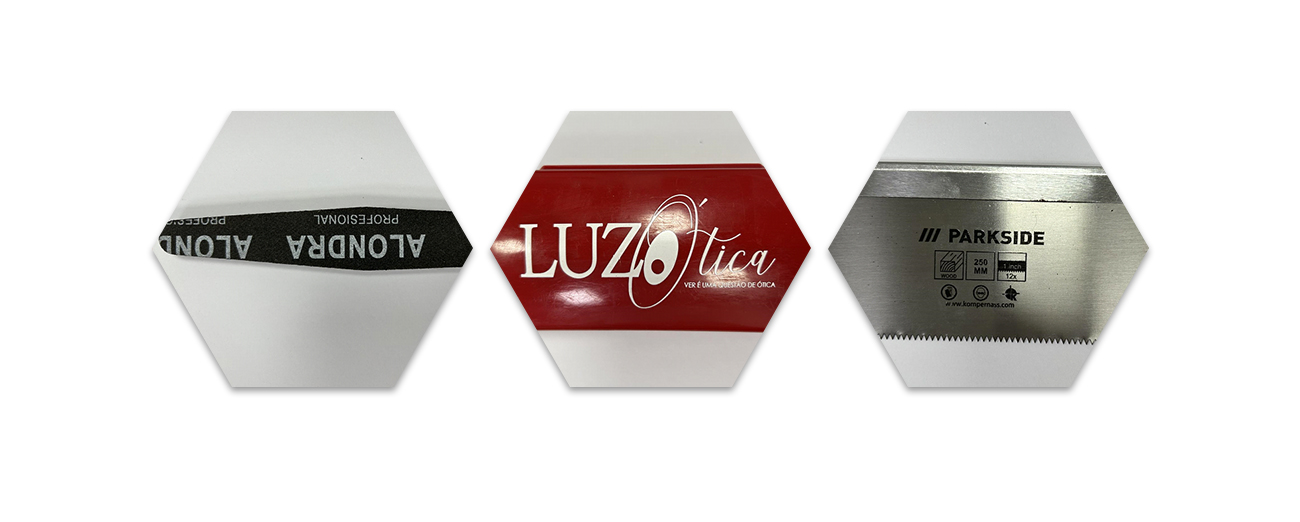

Printing samples
