UIN-330R Roll-to-Roll Full-Color Digital Printer

UIN-330R Roll-to-Roll  Full-Color Digital Printer, this machine is designed for multiple industries and offers the following advantages:
Broadly applicable material range: This printing machine can print various materials, including PVC, film, and others.
Eco-friendly imported inks: Utilizing environmentally friendly printing technology, these inks support the CMYK four-color plus white printing method. This machine can provide users with high-quality, eco-friendly colored printing results.
Refined appearance: The meticulously crafted design of this machine not only enhances the product's aesthetic appeal but also provides users with an improved user experience, conveying a sense of professionalism and modernity.
Stable Structure: This printing machine features a stable structural design, which contributes to achieving outstanding printing quality, enhancing production efficiency, and reducing production costs. It provides customers with a reliable printing solution.
User-friendly interface: Equipped with a user-friendly interface, which enhances overall user-friendliness and operational efficiency, making the operation more direct and effective.

相关产品



技术参数 Technical Parameters

机器型号 Machine model

UIN-300R

喷头技术 Printhead technical

Epson/HP A3/Ricoh

喷头宽度 Printhead width

33mm/300mm/54mm

喷嘴排数 Number of nozzle rows

4 排4 rows / 8排 8 rows

喷印速度 Printing speed

0-120 m/min

喷头横向精度
Printhead horizontal resolution

600dpi-1200dpi

喷头纵向精度 Printhead vertical resolution

1200dpi multiple adjustable

喷印材料 Printhead material

PP,塑料,卷对卷材料 PP,plastic ,roll-to-roll material.

走料方式 Material feeding method

卷对卷 Roll to roll

喷印颜色 Printing color

单色或多色 Single color/white+color/full color

喷印宽度 Printing width

33mm~330mm

接口方式 Interface type

TCP/IP, dll  customization

喷印电脑 Printing computer

Windows 8 、Windows10

喷印软件 Printing software

可变数据编辑软件,MagicData,variable data editing software

二次开发 Secondary development

软件提供接口支持二次开发
Software interface,secondary development available

墨路控制系统 Ink system control

负压墨路控制,正压喷头清洗
Negative pressure ink control,positive pressure nozzle cleaning

 墨水类型 Ink type

循环墨路 Circulation ink supply system

固化方式 Curing type

LED灯固化 LED-UV curing quick-drying

最大材料宽度 Maximum material width

350mm

电力要求 Power requirement

AC220V±10%  50Hz/60Hz 500w

设备尺寸 Equipment size

(length)2000mm x(width)1250mm  x(height)1500mm

机器重量 Equipment weight

650kg



无版喷墨印刷机优势 Advantages Of Plateless Inkjet Printing

无  需  制  版

No need for plate making

无  需  洗  机

No need to machine wash

环  保  节  能

Environmental protection and energy saving

喷  墨  技  术

Inkjet technology

一  张  起  印

Print from one sheet

立  等  可  取

Immediately wait for it

工  艺  简  单

Process is simple

操  作  方  便

Easy to operate

省  时  省  力

Save time and effort

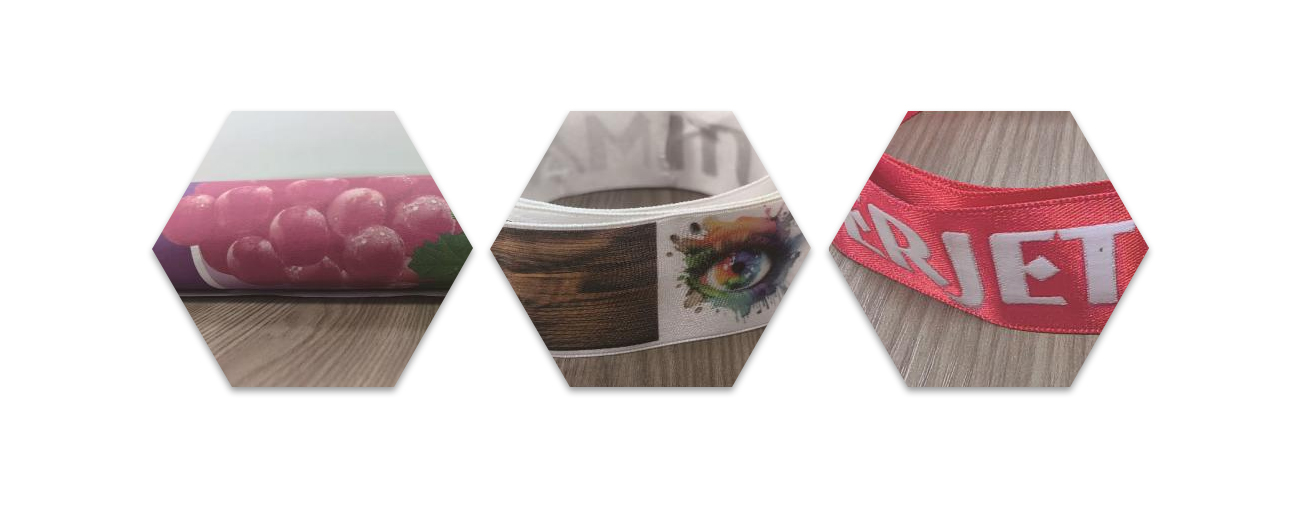

Printing samples
