Pagination Machine
This pagination machine is designed to place stacked pages through friction operation, transferring individual pages onto the conveyor belt for synchronized operations with coding machines, laser machines, labeling machines, and other related equipment. It facilitates automated processes such as coding and printing date encoding, laser printing of graphic and text information, and labeling of product tags. This helps reduce the tediousness of manual pagination, fully leveraging the high-speed printing advantages of coding and laser machines to improve printing efficiency and facilitate production operations and management. The structure is well-designed with an independent axis, and the replacement of vulnerable parts is simple and fast. Equipped with manual and automatic functions, it is convenient for debugging and production operations.

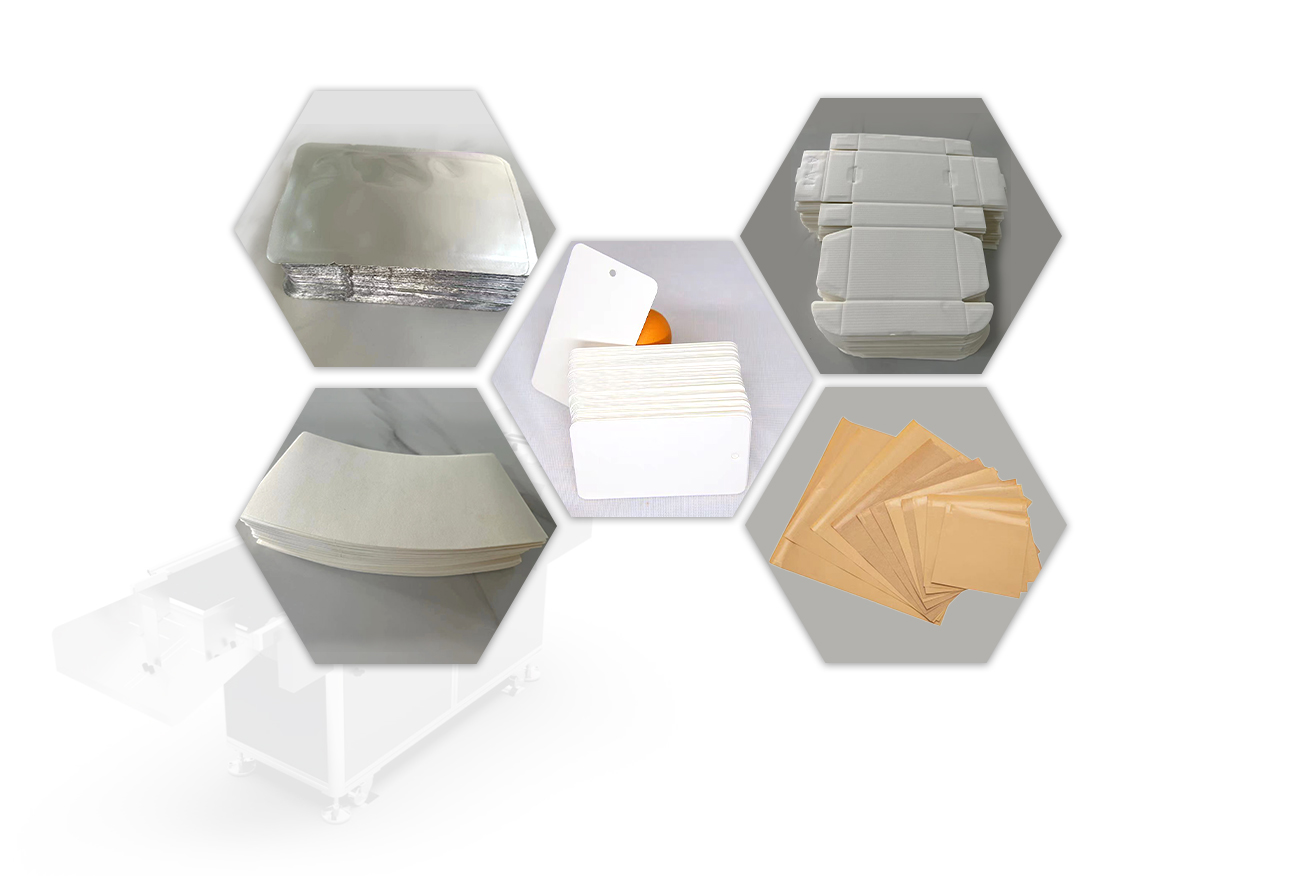

Applicable Scope: Cards, packaging bags, labels, packaging boxes, etc.
| 技术参数 Technical Parameters | |
|
输入电源 Power requirement |
AC220V±10% 50HZ/60HZ 500w |
|
输送速度 Transport speed |
0-80m/min |
|
输送宽度 Transport width |
446mm |
|
分离物尺寸 Separation size |
宽度（Width）60-430mm 厚度(thickness) 0.02-5mm |
|
适用产品 Applicable products |
塑料袋，纸片，标签，包装袋 Plastic bag,Paper sheet,Label,Packaging bag，etc. |
|
皮带 Belt |
黑色pvc 2.0 Black PVC 2.0 |
|
负压吸附可选 Optional vacuum adsorption |
风扇吸附/高压风机吸附 Fan adsorption/high-pressure fan adsorption |
|
标准配置 Standard configuration |
分页+输送+收料斗 Pagination+transmission+receiving hopper |
|
可选配置 Customizable configuration |
负压吸附（适用轻薄/光滑产品） negative pressure adsorption(suitable for light/thin/smooth material） 自动收集（持续叠料/分堆叠料） automatic collection (continuous stacking/piling） |
|
传动方式可选 Selectable transmission mode |
变频调速 Brequency control 直流无刷电机 Brushless DC motor |
|
输送带长度可选 Selectable conveyor belt length |
650-1300mm |
|
设备尺寸 Equipment size |
（length）2228mm x（width）700mm x（height）1116mm |
|
机器重量 Equipment weight |
100kg |
|

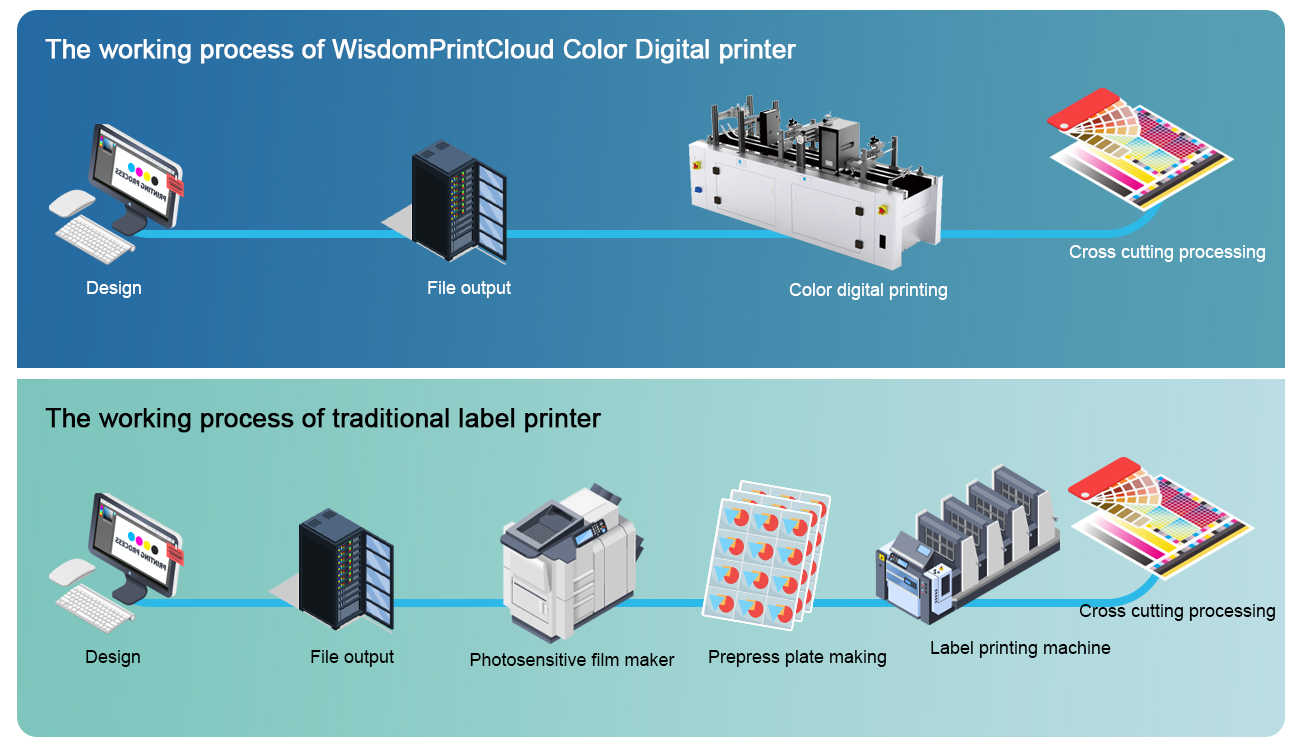

无版喷墨印刷机优势 Advantages Of Plateless Inkjet Printing |
||
|
无 需 制 版 No need for plate making |
无 需 洗 机 No need to machine wash |
环 保 节 能 Environmental protection and energy saving |
|
喷 墨 技 术 Inkjet technology |
一 张 起 印 Print from one sheet |
立 等 可 取 Immediately wait for it |
|
工 艺 简 单 Process is simple |
操 作 方 便 Easy to operate |
省 时 省 力 Save time and effort |
Printing samples
