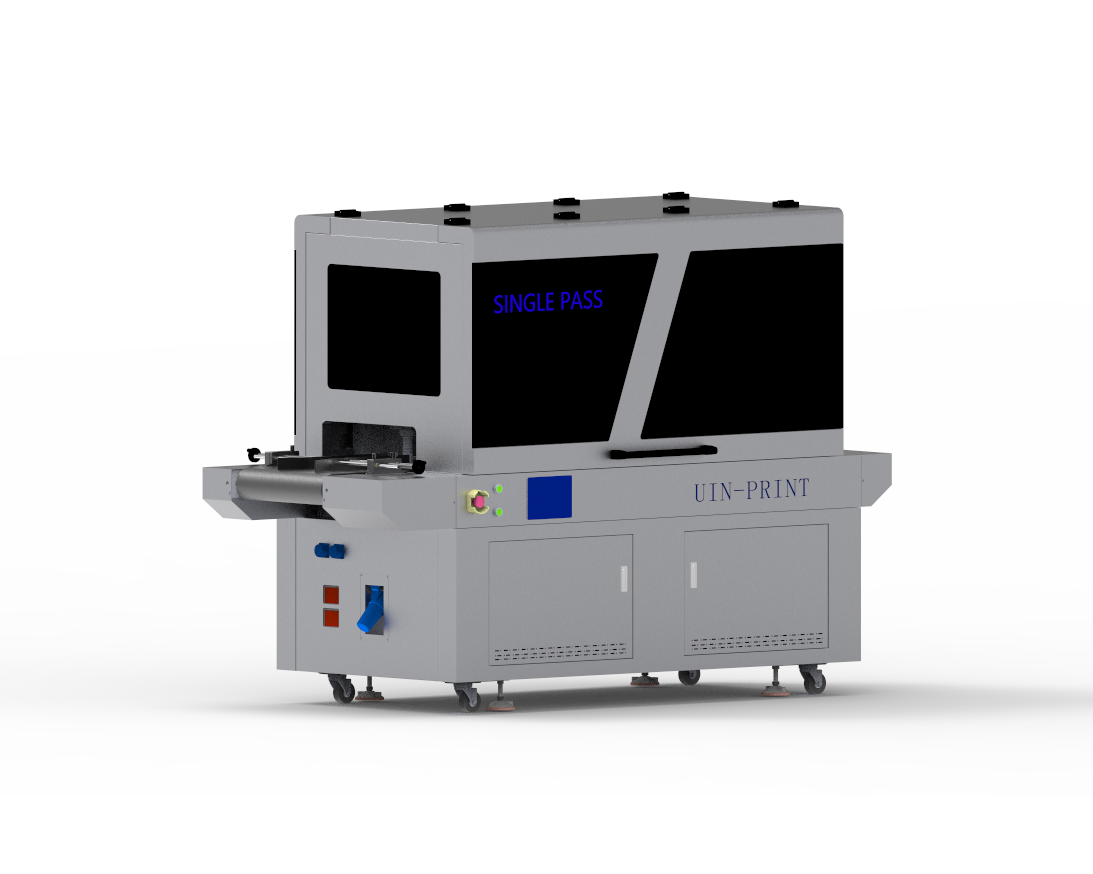

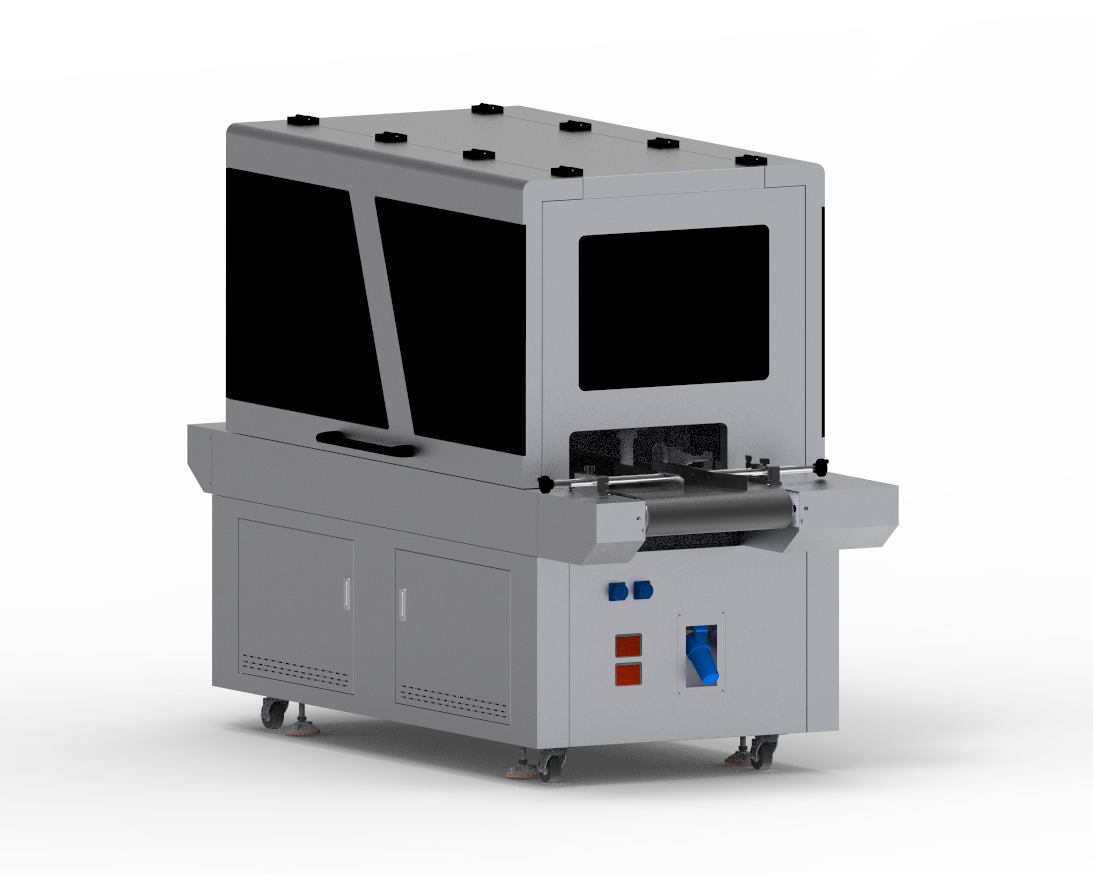

UIN-PRINT Single pass UV printer
UIN-2005U Dual-Row Full-Color Digital Printer, This Machine is designed for various industries and offers the following advantages:
Wide Range of Applicable Materials: This printing machine can print patterns on various material surfaces, including tea paper, PVC, PP, acrylic, metal, wood, and more, achieving a high level of adaptability to different printing materials.
Personalized Custom Printing: Without the need for waiting and plate making, users can simply import the desired printing content and start color batch printing. This makes the printing machine ideal for rush orders, small orders, color orders, and e-commerce orders, meeting the demand for personalized customization.
Imported Eco-Friendly Ink: Utilizing eco-friendly printing technology and supporting CMYK four-color plus white printing, the machine provides users with high-quality color printing results that comply with environmental standards.
Exquisite Appearance: The machine's finely crafted design not only enhances product aesthetics but also provides users with a better user experience, demonstrating a professional and modern feel.
Stable Structure: The printing machine adopts a stable structural design, contributing to excellent print quality, increased production efficiency, and reduced production costs, offering customers a reliable printing solution.
User-Friendly Operation Interface: Equipped with a user-friendly operation interface, it enhances overall user-friendliness and operational efficiency, making the operation more straightforward and efficient."
| 技术参数 Technical Parameters | |
|
机器型号 Machine model |
UIN-2005U |
|
喷头技术 Printhead technical |
MEMS |
|
喷头寿命 Printhead life |
压电体驱动耐久性，1060亿次压电耐久后正常使用（喷头厂家数据） Piezoelectric Drive durability,more than 106 billion times |
|
喷头宽度 Printhead width |
54mm/108mm/Multiple row options |
|
喷嘴数量 Number of nozzles |
1280 |
|
喷嘴排数 Number of nozzle rows |
4 rows |
|
喷印速度 Printing speed |
0-120 m/min |
|
喷头纵向精度 Printhead horizontal resolution |
600dpi |
|
喷头横向精度 Printhead vertical resolution |
200dpi-1200dpi multiple adjustable |
|
喷印材料 Printing material |
工艺礼品，纸杯，玩具，纸袋，礼品盒，文具盒 craft gifts，paper cup，toy，paper bag，gift packing box，pencil box,etc. |
|
走料方式 Material feeding method |
单个/单体 Single/Monomer |
|
喷印颜色 Printing color |
单色/白+彩/全彩 Single color/white+color/full color |
|
喷印宽度 Printing width |
54mm/108mm/Multiple row options |
|
接口类型 Interface type |
TCP/IP，dll customization |
|
喷印电脑 Printing computer |
Windows 8 、Windows10 |
|
喷印软件 Printing software |
MagicData ,variable data editing software |
|
二次开发 Secondary development |
软件提供接口支持二次开发 Software interface ,secondary development available |
|
墨路控制 Ink system control |
负压墨路控制，正压喷头清洗 Negative pressure ink control,positive pressure nozzle cleaning |
|
墨水类型 Ink type |
进口环保UV墨水 Imported environmental UV ink |
|
固化类型 Curing type |
LED-UV curing |
|
打印宽度 Printing width |
400mm |
|
输送速度 Conveying speed |
0-80m/min |
|
电源功率 Power requirement |
AC220V±10% 50HZ/60HZ 500w |
|
机器尺寸 Equipment size |
（length）2297mm x（width）989mm x（height）1700mm |
|
机器重量 Equipment weight |
560kg |
|
无版喷墨印刷机优势 Advantages Of Plateless Inkjet Printing |
||
|
无 需 制 版 No need for plate making |
无 需 洗 机 No need to machine wash |
环 保 节 能 Environmental protection and energy saving |
|
喷 墨 技 术 Inkjet technology |
一 张 起 印 Print from one sheet |
立 等 可 取 Immediately wait for it |
|
工 艺 简 单 Process is simple |
操 作 方 便 Easy to operate |
省 时 省 力 Save time and effort |
Printing samples
