UIN-PRINT Single passs UV printer

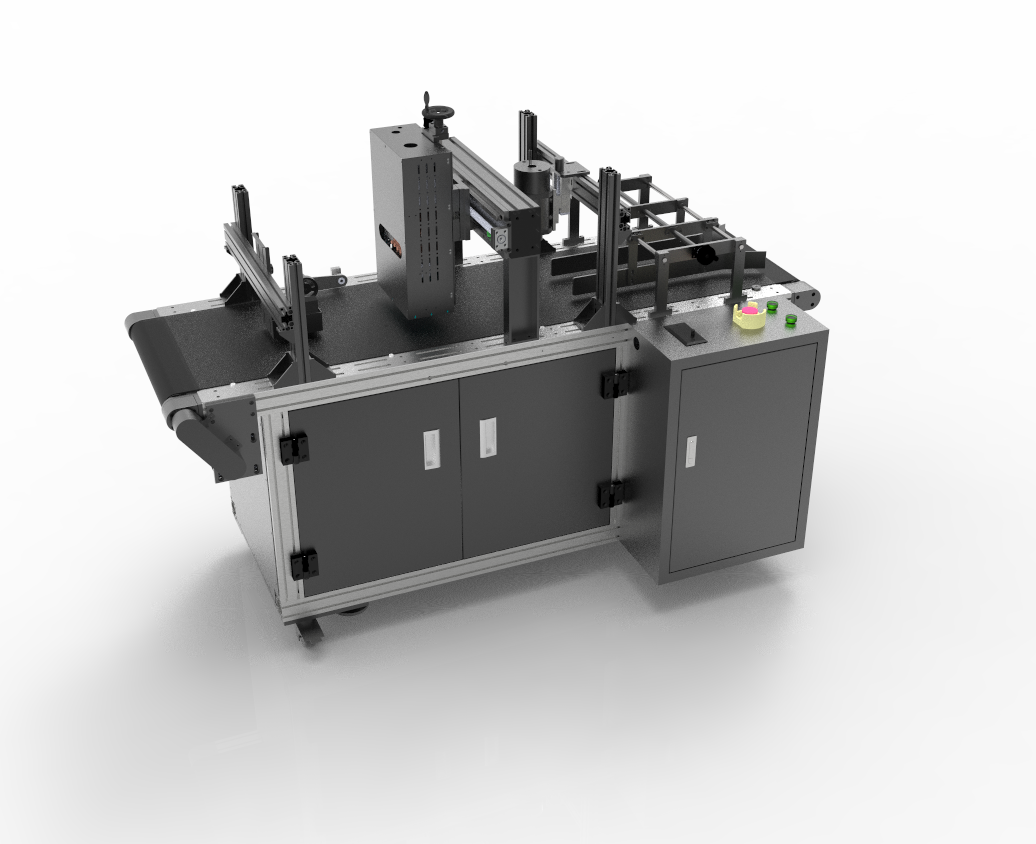

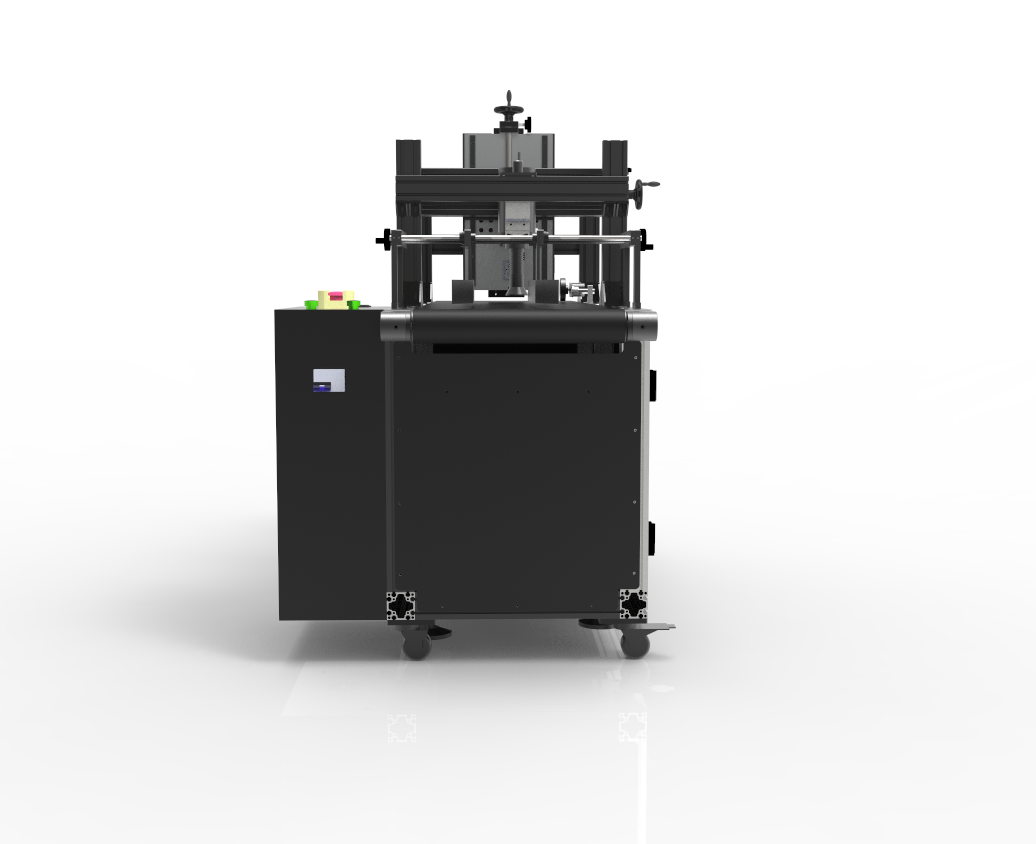

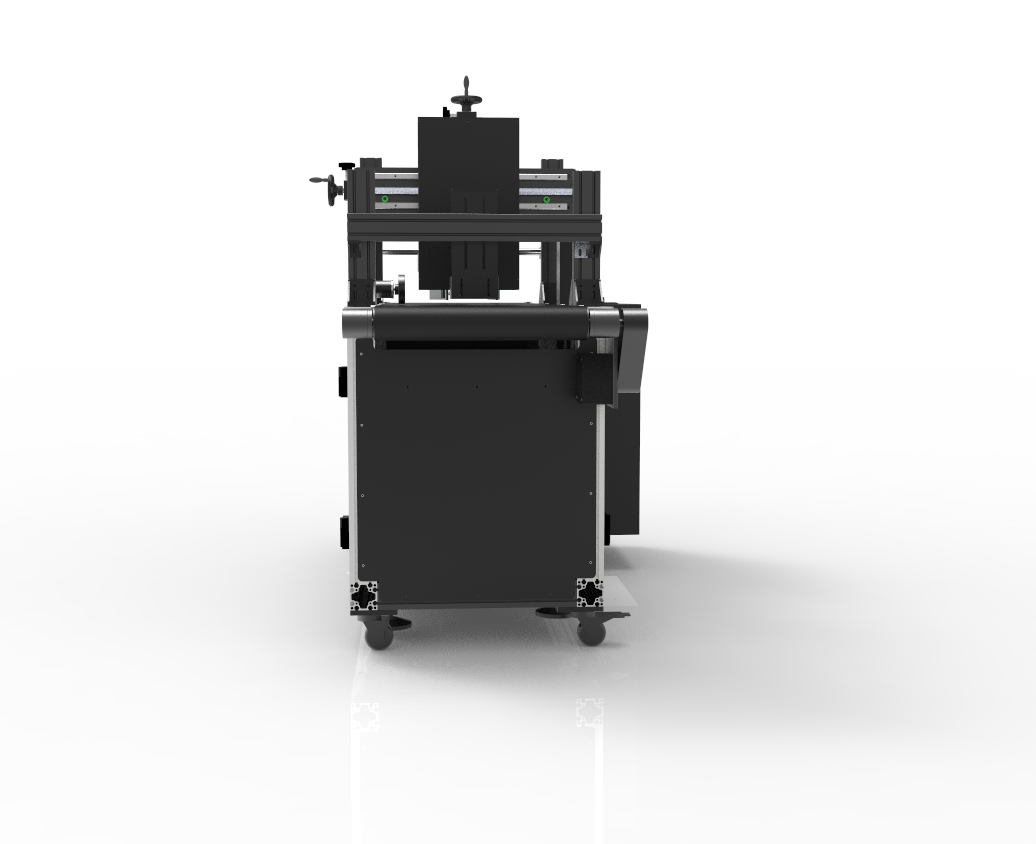

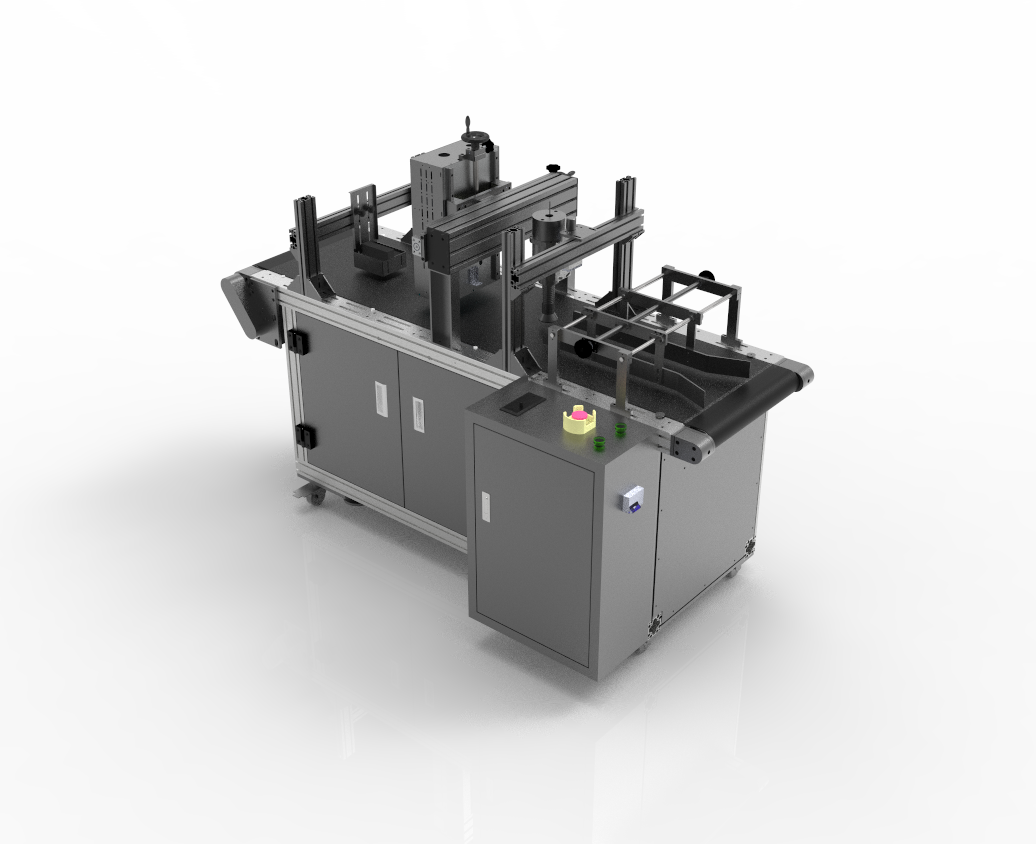

UIN-2001U Double row monochrome printer, This Machine is a customized digital printing solution designed for the packaging industry. It boasts an exquisite and beautiful appearance with user-friendly operation. This machine can print patterns on surfaces of materials such as tea paper, PVC, PP, acrylic, metal, wood, etc. It enables personalized and customized printing content without the need for waiting or plate making. Users can import the desired printing pattern and start printing immediately, offering color printing with no color limitations, serving as an alternative to traditional screen printing. The stable performance helps customers achieve excellent print quality, enhance production efficiency, and reduce costs.
Single-Color Dual-Row Machine
The upgraded version offers even more convenient operation, a more exquisite appearance, and a more stable mechanism, significantly improving overall efficiency.
| 技术参数 Technical Parameters | |
|
机器型号 Machine model |
UIN-2001U |
|
喷头技术 Printhead technical |
MEMS |
|
喷头寿命 Printhead life |
压电体驱动耐久性，1060亿次压电耐久后正常使用（喷头厂家数据） Piezoelectric Drive durability,more than 106 billion times |
|
喷头宽度 Printhead width |
54mm/108mm |
|
喷嘴数量 Number of nozzles |
1280 |
|
喷嘴排数 Number of nozzle rows |
4 rows |
|
喷印材料 Printhead material |
小工艺礼品，纸杯，玩具，纸袋，礼品盒，文具盒 craft gifts，paper cup，toy，paper bag，gift packing box，pencil box,etc. |
|
走料方式 Material feeding method |
单个/单体 Single/Monomer |
|
喷印颜色 Printing color |
单色 One color |
|
喷印宽度 Printing width |
54mm/108mm/Multiple row options |
|
接口类型 Interface type |
TCP/IP，dll customization |
|
喷印电脑 Printing computer |
工控制电脑,Windows 10 系统 |
|
喷印软件 Printing software |
Magic Data ,variable data editing software |
|
二次开发 Secondary development |
软件提供接口支持二次开发 Software interface ,secondary development available |
|
墨路控制系统 Ink system control |
负压墨路控制，正压喷头清洗 Negative pressure ink control,positive pressure nozzle cleaning |
|
电源功率 Power requirement |
AC220V±10% 50HZ/60HZ 500w |
|
输送速度 Conveying speed |
0-50m/min |
|
打印宽度 Printing width |
430mm |
|
标准配置 Standard configuration |
导料机构+打印机 Feed mechanism+printer |
|
机器尺寸 Equipment size |
（length）1748mm x（width）912mm x（height）1338mm |
|
机器重量 Equipment weight |
260KG |
|
无版喷墨印刷机优势 Advantages Of Plateless Inkjet Printing |
||
|
无 需 制 版 No need for plate making |
无 需 洗 机 No need to machine wash |
环 保 节 能 Environmental protection and energy saving |
|
喷 墨 技 术 Inkjet technology |
一 张 起 印 Print from one sheet |
立 等 可 取 Immediately wait for it |
|
工 艺 简 单 Process is simple |
操 作 方 便 Easy to operate |
省 时 省 力 Save time and effort |
Printing samples
